Our Products - Thickness Gauge

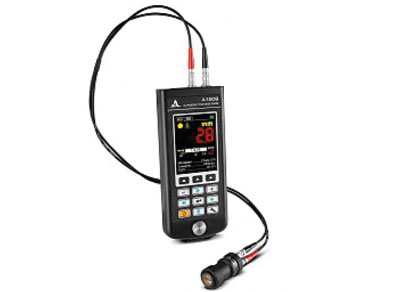

Thickness Gauge A1209
Applicable for wall thickness measurements on tubes, vessels, boilers and other metal objects. The patented algorithm of automatic adaptation to the surface curvature and roughness allows measurements on different surfaces and thicknesses without special adjustments of the device. The minimal curvature radius is 3 mm and the roughness of surface up to Rz160.
New performance for reliable measurements!
New ultrasonic thickness gauge A1209 is the bestway applicable for measuring thickness of pipes, boilers, vessels and variety of other metal parts.

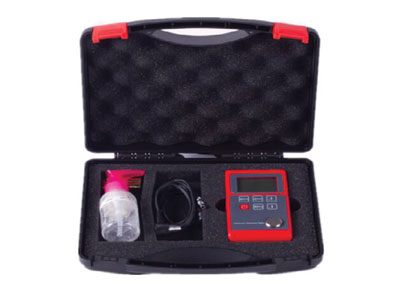

Thickness Gauge Leeb321/322
Function & Feature:
- Display: LCD with LED back light .The brightness and the contrast of the LCD is adjustable.
- Display contents: thickness value, coupling condition, power state, CAL calibration state, sound velocity.
- Able to measure the ultrasonic velocity in turn if the thickness value is known in order to improve the measurement precision.
- Zero adjustment: auto returning to zero when you press the key after the probe is put on the specimen.
- Simply and easily operated.
- Nonlinear correction, automatic compensation, in order to improve the measurement accuracy.
Multi-Mode Thickness Gauge with B-Scan
Function & Feature:
- Powered by a 20MHz platform with ultra low power 10 bit digitizer.
- 1/8” VGA grayscale display (240 x 160 pixels). Screen Refresh rate of 25 Hz.
- Measure modes: (P-E) pulse-echo (flaws & pits) and (E-E) echo-echo (thru-paint).
- Adjustable gain option; high, med, or low in (P-E) mode, or automatic gain control (AGC) in (E-E) mode.
- Display veiws: Large Digits or B Scan (cross section).

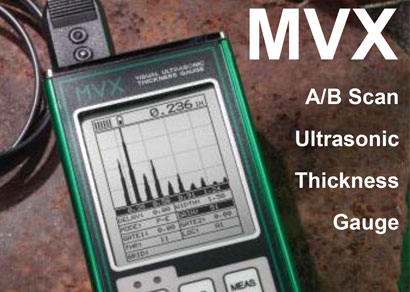

MVX A/B Scan Thicknes Gauge
Function & Feature:
- The physical size, weight, and display resolution are just a few of the benefits of the MVX.
- The adjustable square wave pulser provides the flexibility necessary for both high resolution and penetration requirements.
- The MVX is equipped with multiple viewing options to provide users with a complete set inspection tools: (RF waveform, +/- Rectified waveform, Time based B-Scan, and Large Digits).
- The A-Scan rectified mode is commonly used for detecting flaws/pits in pulse-echo mode and measuring through paint and coatings in echo-echo mode.

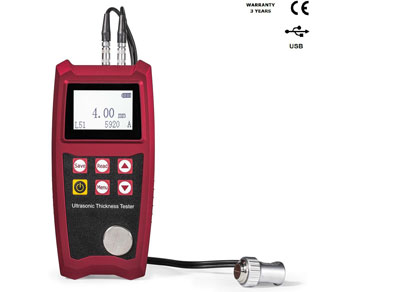

Uee Series930
Function & Feature:
- High quality and precision
- with 2 probes (Standard probe and Angle probe)
- Integrated with a 4mm calibration block.
- Two display units: mm and inch.
- With coupling state indication.
- Measuring sound velocity: according to the known thickness of the object, sound velocity of it can be measured directly.
- Software for PC connection and data transmission, analysis.
- 3 years warranty and life-long services
Ultrasonic Thickness Gauge TM210 Plus
Function & Feature:
- Capable of performing measurements on a wide range of material, including metals, plastic, ceramics, composites, epoxies, glass and other ultrasonic wave well-conductive materials.
- Transducer models are available for special application, including for coarse grain material and high temperature applications.
- Probe-Zero function, Sound- Velocity-Calibration function.
- Two-Point Calibration function.
- Battery information indicates the rest capacity of the battery. Ultra-low power consumption, it is can continue working 100 hours.
- USB port with Protective Membrane and datapro software to process the memory data on the PC.
- Adjust gain function ,can easy to test the cast iron material.

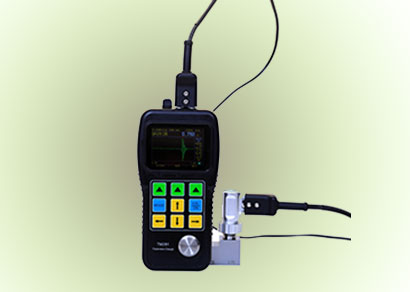

Ultrasonic Thickness Gauge TM 281DL
Function & Feature:
- 2.4" color OLED, 320 X 240 pixels, contrast 10,000:1.
- Live Color A-Scan.
- Through Coating Function No longer need to waste time to remove the coating.
- Exempt Zero Calibration
- High Stability, the measuring value is not influenced by the probe pressure, the coupling layer thickness and the surface dust of the work piece.
- Zero Drift.

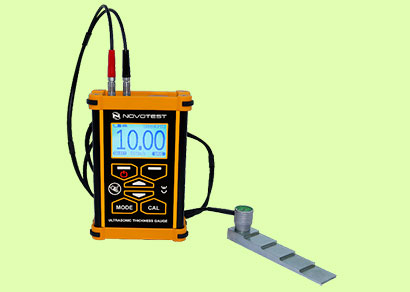

Ultrasonic Thickness Gauge UT-1M-ST
Function & Feature:
- Ultrasonic Thickness Gauge UT-1M-ST is a special version of the thickness gauge in a metal enclosure, which is designed for extreme operating conditions, when there is a possibility of the device dropping or other damage of the unit during operation. The durable aluminum bodie's profile withstands high static and dynamic compression loads, which allows the operator to use the device "carelessly".
- Ultrasonic Thickness Gauge UT-1M-ST is designed to measure the thickness of products with low attenuation of ultrasonic vibrations, with one-way access to them during their manufacture and operation.
