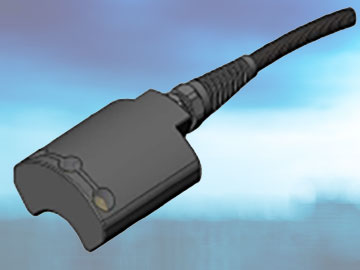

NFA-E-PIT Probes
Detect ID and OD cracks and pits in thick stainless steel tubes
| Defect type | Threshold of Detection (ToD) | Comment |
|---|---|---|
| Ø3/16" OD FBH's | 10% deep | High sensitivity to ID & OD pits |
| Ø3/16" ID FBH's | 20% deep | |
| 0.025" wide axial circ OD notch | 10% deep | High sensitivity to ID & OD cracks |
| 0.025" wide axial circID notch | 20% deep | |
| OD general wall loss | 5% deep | High sensitivity to ID & OD general wall loss |
| ID general wall loss | 10% deep |
